Booth body | Wall Panel and roof | EPS foam colorful steel skin panel, 50mm thick, steel 0.426mm thick, tongue&groove style, compound construction, galvanized steel roof panel. |

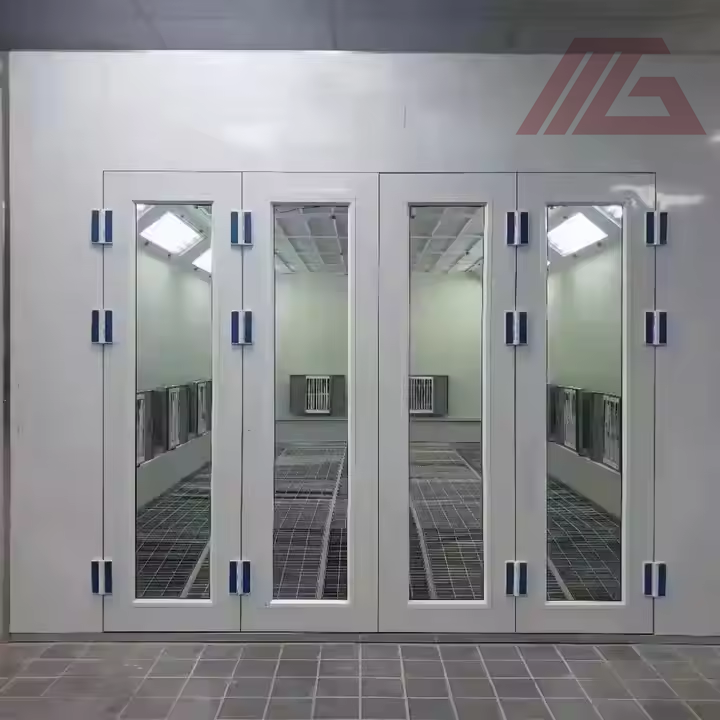

| Entry door | Folding door, 3PCS, size 3000mm(W)*2500mm(H), sheet metal door with handle and lock and 5mm thick tempered glass window. |
| Personnel Door | Size 700mm(W)*1800mm(H), with 5mm thick tempered glass window. *There is a pressure lock on the door, which will automatically open when the indoor air pressure is too high. |
| Basement | The basement made by high quality steel design and square tubes assembling. 2 rows of grills made by flat bar and round steel, 30*4mm; 3 rows of diamond plates, galvanized. |
| Ramp | One pair of galvanized ramps, size 1800*650mm. |
Roof system | Beam | Made by 40*60 galvanized square pipe, with supporting; and also 40*40mm angle iron connected by rivet. |
| Plenum | The plenum made by galvanized steel, The roof filter support frame made by 25*25 and 15*15 galvanized square tubes |
Air circulation system | Intake fan | Two sets of 3KW Double-intake centrifugal fan, air Capacity 20000m3/ h in total. |
| Exhaust fan | One set of 4KW exhaust fan, air capacity 12500m3/h in total. |
| Fan cabinet | Fan cabinet made by painted sections ;the ex- haust duct made by high-quality galvanized steel, and professional flange. |
Purification system | Intake filter | Intake filter is high quality imported filter, could capture the articles larger than 10μm. Filtering rate >83% |
| Roof filter | High efficiency imported Italy filters, could capture the articles larger than 5μm. Filtering rate >97% |
| Floor filter | The floor filter is fiberglass filter, TSP≤14mg/m3 Filtering rate >70% |
